Fcl in-line suction filters, with paper cartridge

Fcl in-line suction filters, with paper cartridge

These small in-line filters retain impurities and very fine dust, interfering with the capacity in a negligible manner. Thanks to their reduced size, they can be directly installed onto vacuum piping, close to the services (vacuum cups, vacuum clamping systems etc.) for a fractionated filtration and a better visual control of all the plant suction points. They are composed of a cylindrical transparent plexiglass body closed by two anodised aluminium flanges kept in place by seeger rings, where all the threaded male or female connections and seals are located. Inside there is a filtering cartridge with a filtering degree equal to 7 μ, which is made with a special treated paper that is pleated to increase the filtering surface. The filters can be inspected by simply removing one of the flanges. Due to the paper filtering element, these filters are not recommended in presence of water or oil vapours or condensations. Technical features:
Working pressure: from 0.5 to 3000 mbar abs.
Fluid temperature: from -20 to +60 °C
Filtering degree: 7 μ.
Product codes: FCL1 FCL2 FCL3 FCL1M FCL2M FCL3M FCL1MF FCL2MF FCL3MF

top next
Paper filtering cartridges for fcl filters

Paper filtering cartridges for fcl filters

The cartridges described below are suited for FCL filters. They are made with a special treated paper with a filtering degree equal to 7 μ, which is pleated in order to increase its surface and wrapped on two flanges in plastic material. They are recommended for retaining impurities and fine dust, but not in presence of water or oil vapours or condensations.
Product codes: 00FCL03

5.02
top next
Small pneumatic suction pumps art. Pa 3 and pa 7

Small pneumatic suction pumps art. Pa 3 and pa 7

The assembly of a pressure adjuster equipped with pressure gauge and of an FCL filter on the suction inlet connection of a vacuum generator of the M .. SSX range has allowed creating these small pneumatic suction pumps. Their main features include reduced overall dimensions compared to their technical performance. The vacuum level and capacity can be adjusted according to the supply air pressure. These pumps are supplied by compressed air with a pressure ranging from 1 to 5 bar (g) and they can produce a maximum vacuum of 85% and a suction capacity between 2 and 18 cum/h, measured at a normal atmospheric pressure of 1013 mbar. Being based on the Venturi principle, these pumps do not develop heat. An SSX silencer screwed onto the pump exhaust ensures a silent operation. The filter equipped with a microporous cartridge is located on the suction inlet connection and can keep the finest dust and impurities. Thanks to their static operating principle, maintenance is reduced to a simple regular cleaning of the filter.
Product codes: PA3 PA7

10.03
top next
Small pneumatic suction pumps art. Pa 10, pa 14 and pa 18

Small pneumatic suction pumps art. Pa 10, pa 14 and pa 18

The assembly of a pressure adjuster equipped with pressure gauge and of an FCL filter on the suction inlet connection of a vacuum generator of the M .. SSX range has allowed creating these small pneumatic suction pumps. Their main features include reduced overall dimensions compared to their technical performance. The vacuum level and capacity can be adjusted according to the supply air pressure. These pumps are supplied by compressed air with a pressure ranging from 1 to 5 bar (g) and they can produce a maximum vacuum of 85% and a suction capacity between 2 and 18 cum/h, measured at a normal atmospheric pressure of 1013 mbar. Being based on the Venturi principle, these pumps do not develop heat. An SSX silencer screwed onto the pump exhaust ensures a silent operation. The filter equipped with a microporous cartridge is located on the suction inlet connection and can keep the finest dust and impurities. Thanks to their static operating principle, maintenance is reduced to a simple regular cleaning of the filter.
Product codes: PA10 PA14 PA18

10.04
top next

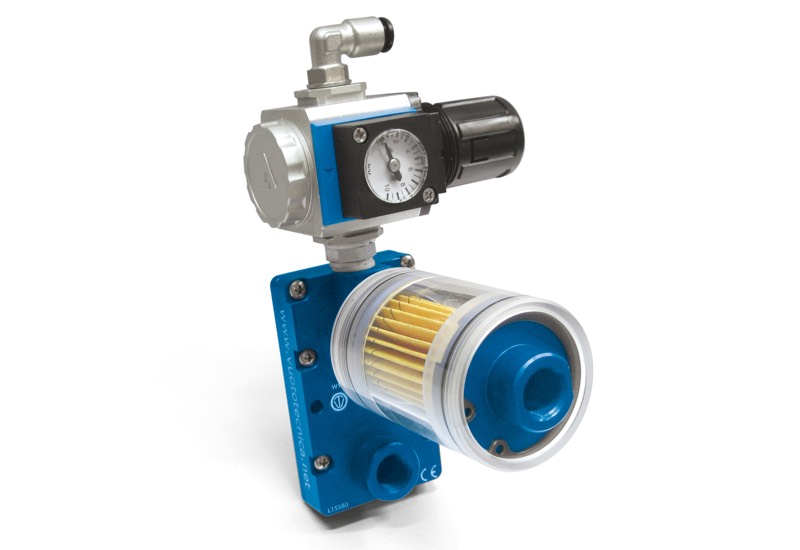

Small pneumatic blowing pumps  art. Ps 3 and ps 7

Small pneumatic blowing pumps art. Ps 3 and ps 7

The assembly of a pressure adjuster equipped with pressure gauge and of an FCL filter on the suction inlet connection of a vacuum generator of the M .. SSX range has allowed creating these small pneumatic suction pumps. Their main features include reduced overall dimensions compared to their technical performance.
The vacuum level and capacity can be adjusted according to the supply air pressure. These pumps are supplied by compressed air with a pressure ranging from 1 to 5 bar (g) and they can produce a maximum pressure of 0.7 bar (g) and a blowing capacity between 2.7 and 31 cum/h, measured at a normal atmospheric pressure of 1013 mbar. Being based on the Venturi principle, they do not develop heat.
The filter equipped with microporous cartridge located on the air inlet connection can keep the finest dust and impurities.
Thanks to their static operating principle, maintenance is reduced to a simple regular cleaning of the filter.
Product codes: PS3 PS7

10.08
top next
Small pneumatic blowing pumps art. Ps 10, ps 14 and ps 18

Small pneumatic blowing pumps art. Ps 10, ps 14 and ps 18

The assembly of a pressure adjuster equipped with pressure gauge and of an FCL filter on the suction inlet connection of a vacuum generator of the M .. SSX range has allowed creating these small pneumatic suction pumps. Their main features include reduced overall dimensions compared to their technical performance.
The vacuum level and capacity can be adjusted according to the supply air pressure. These pumps are supplied by compressed air with a pressure ranging from 1 to 5 bar (g) and they can produce a maximum pressure of 0.7 bar (g) and a blowing capacity between 2.7 and 31 cum/h, measured at a normal atmospheric pressure of 1013 mbar. Being based on the Venturi principle, they do not develop heat.
The filter equipped with microporous cartridge located on the air inlet connection can keep the finest dust and impurities.
Thanks to their static operating principle, maintenance is reduced to a simple regular cleaning of the filter.
Product codes: PS10 PS14 PS18

10.09
top next
Pneumatic pump suction filters

Pneumatic pump suction filters

To allow the pneumatic suction and blowing pumps to work even in very dusty environments it is necessary to use these filters that, installed on the suction inlet connection, can keep the finest dust and impurities and affecting the capacity in a negligible manner.
The filtering cartridges, in fact, are made with a special treated paper with a porosity level of 5 ÷ 7 micron, and pleated to increase the filtering surface. FCL filters are composed of a transparent plexiglas cylindrical body inside of which is located the filtering cartridge locked by two anodised aluminium flanges that are kept in place by Seeger rings, inside of which the threaded connectors and the seals are housed.
The filters can be inspected by simply removing one of the two flanges. The container of the filtering element FP is made with plastic and it is screwed onto the blue plastic lid; a gasket located between the two elements ensures a perfect seal. The container of the filtering element FC, as well as its lid, are made with sheet steel and varnished with a special oxidation-resistant treatment. A gasket between the lid and the container ensures a perfect vacuum seal, while the release clamps on the container allow a quick opening of the lid to check or replace the filtering cartridge.
Product codes: FCL1MF FCL2MF FP30/4/SP FC38 FC55
