Membrane vacuum mini pump
The small pumps described on this page are membrane-type.
They can be used both as vacuum pumps and compressors. In the latter version they can supply compressed air 100% oil-free up to a maximum 2 bar pressure.
They are composed of:
- An air-cooled single-phase electric motor with protection class IP 00 (assembly execution).
- A pump body made of plastic corrosion-resistant material, complete with fittings at both suction and blowing ports or, upon request, with threaded connections.
- A Viton membrane, fixed to a connecting rod, resistant to wear and corrosion.
- A connecting rod with incorporated long life bearing powered by an eccentric balanced system fitted on the crankshaft.
- An aluminium support, for fastening the pump.They are available in the versions with single and double head to be used in series or in parallel.Membrane vacuum mini pumps are very silent (≤ 50dB(A)), they have reduced vibrations and can be installed in any position.Lubrication-free, they require no maintenance.
Thanks to their minimal overall dimensions and reduced weight, they are particularly indicated for being installed on portable equipment.
They are suited for a discontinuous and non-intense use.
Produc codes: H35M H35M11060 H40DM H40DM11060
|
|
|
Membrane vacuum mini pumps, with dc motor
The mini pumps on this page are the same as described above, with a DC motor rather than an AC.
The performances are also almost the same.
Product codes: H35MCC H40DMCC
|
|
|
Rotary vane vacuum pumps – General description
Working principle
The rotor rotates eccentrically inside a stator and it has grooves in which the vanes move freely and are pushed against the stator inside wall due to the centrifugal force, thus creating as many chambers as the number of vanes. During rotation, the volume of these chambers varies according to their position with respect to the eccentric axis.The chamber volume increase makes the air inside of them expand, thus creating vacuum (suction phase); the volume reduction, on the other hand, generates air compression (exhaust or delivery phase).
The internal design is the same for both rotating compressors and vacuum pumps. We have created two different sucked air conveying principles for our pumps.
|
|
|
Vacuum pumps VTL 2 and 4
These small vacuum pumps have a suction flow rate of 2 and 4 m3/h.
They feature a wick lubrication with oil recirculation, while the rotor, which is cantilevered-fitted on the motor shaft, allows reducing the overall dimensions to the minimum.
The motor and the pump are cooled by the motor fan (surface cooling).
The pumps are equipped with a small tank in line with the pump, which contains the lubrication oil as well as a separator filter to prevent oil mists and to reduce noise.
We strongly recommend installing a check valve and a filter on the suction inlet.Pumps VTL 2 and 4 can also be supplied with single-phase electric motor.
Product codes: VTL2 VTL4
|
|
|
Vacuum pumps VTL 5 and 10
These vacuum pumps have a suction flow rate of 5 and 10 m3.
The vacuum lubrication with oil recirculation can be adjusted via an oiler located in correspondence of the suction inlet.
The rotor is cantilevered-fitted on the motor shaft and, as a result, the overall dimensions are reduced.
The motor and the pump are cooled by the motor fan (surface cooling).
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.We strongly recommend installing a check valve and a filter on the suction inlet.
Pumps VTL 5 and 10 can also be supplied with a single-phase electric motor.
VTL5 VTL10
|
|
|
Vacuum pumps VTLP 5 and 10, with disposable lubrication
Product codes: VTLP5 VTLP10
|
|
|
Vacuum pumps VTL 10/FG, 15/FG and 20/FG
These vacuum pumps have a suction flow rate of 10, 15 and 20 m3/h. The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. We strongly recommend installing a check valve and a filter on the suction inlet.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTL10/FG VTL15/FG VTL20/FG
|
|
|
Vacuum pumps VTLP 10/FG, 15/FG and 20/FG, with disposable lubrication
These vacuum pumps have a suction flow rate of 10, 15 and 20 m3/h.
The vacuum with disposable oil lubrication is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained.
The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch.
In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oilers and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties.
We strongly recommend installing a check valve and a filter on the suction inlet.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTLP10/FG VTLP15/FG VTLP20/FG
|
|
|
Vacuum pumps VTL 25/FG, 30/FG and 35/FG
These vacuum pumps have a suction flow rate of 25, 30 and 35 m3/h.
The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings.The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
We strongly recommend installing a check valve and a filter on the suction inlet.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTL25/FG VTL30/FG VTL35/FG
|
|
|
Vacuum pumps VTLP 25/FG, 30/FG and 35/FG, with disposable lubrication
These vacuum pumps have a suction flow rate of 25, 30 and 35 m3/h.
The vacuum with disposable oil lubrication is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained.
The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch.
In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oilers and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties.
We strongly recommend installing a check valve and a filter on the suction inlet.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTLP25/FG VTLP30/FG VTLP35/FG
|
|
|
Vacuum pumps VTL 40/G1, 50/G1 and 65/G1
These vacuum pumps have a suction flow rate of 40, 50 and 65 m3/h.
The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A check valve and a filter must be installed on the suction inlet.
These pumps are supplied with three-phase electric motors only.
Product codes: VTL40/G1 VTL50/G1 VTL65/G1
|
|
|
Vacuum pump VTL 105/G1
This vacuum pump has a suction flow rate of 105 m3/h.
The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint. All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. A check valve and a filter must be installed on the suction inlet. This pump is supplied with three-phase electric motor only.
Product code: VTL105/G1
|
|
|
Vacuum pumps VTLP 40/G1, 50/G1 and 65/G1, with disposable lubrication
These vacuum pumps have a suction flow rate of 40, 50 and 65 m3/h.
The vacuum with disposable oil lubrication is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained.
The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch.
In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oilers and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties.A check valve and a filter must be installed on the pump suction inlet.
These pumps are supplied with three-phase electric motors only.
Product codes: VTLP40/G1 VTLP50/G1 VTLP65/G1
|
|
|
Vacuum pump VTLP 105/G1, with disposable lubrication
This vacuum pump has a suction flow rate of 105 m3/h.
The vacuum with disposable oil lubrication is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained.
The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch.
In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oilers and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties. A check valve and a filter must be installed on the pump suction inlet. This pump is supplied with three-phase electric motor only.
Product code: VTLP105/G1
|
|
|

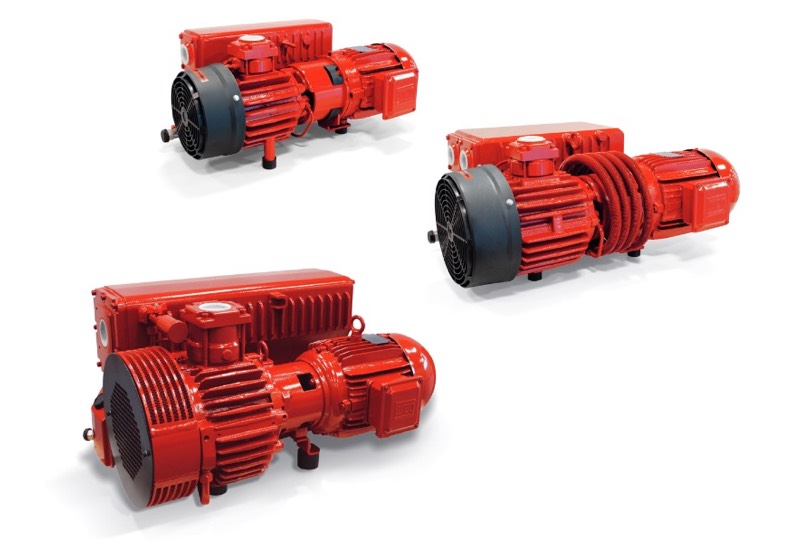

Lubrificated rotary vane vacuum pumps, RVP series
The pumps in this new series are single-stage, rotary vane and with oil-bath lubrication with recycling. The implementation of cutting edge construction techniques and the use of hi-tech, latest generation materials has allowed for the achievement of high standards of quality, performance, duration and low cost of use. The resulting technical features include:
- High pumping speed in the field of absolute pressure between 850 and 0.5 mbar
- Extremely low noise output
- Low operating temperatures
- No pollution
- Low maintenance
The pumps are driven by an electric motor, coupled by means of an elastic transmission joint (not including RVP 15), in compliance with IEC International Standard 60034 requirements for rotating machines and European Directives for Low Voltage (LV) 2006/95/EC, for Electromagnetic Compatibility (EMC) 2004/108/EC, for the limitation of use of hazardous substances RoHS 2011/65/CE and Machine Directive 2006/42/EC for CE marking.
With the exception of electric motors with power lower than 0.75 KW, the efficiency class corresponds to IE3 = Premium Efficiency, with protection degree IP 55, Tolerance of nominal Voltage ± 10% and Class of Insulation F.
A centrifuge fan fitted on the pump shaft ensures a suitable air flow for optimal pump body and radiator cooling (forced surface cooling).
A capacious oil recovery tank located on the pump outlet and equipped with microfibre deoiling cartridges has the function of smoke filtering system and silencer. A special built-in ball cock valve allows for the recovery of oil retained by cartridges. The oil filter, except mod. RVP 15 and 21 pumps, are installed as standard on all.
The oil contained in the system lubricates, cools and seals rotating and fixed pump parts. The check valve on the suction line is an integral part of the pump and is standard while a filter suitable for trapping any suctioned impurities can be supplied upon request.
All pumps except mod. RVP 15 and RVP 21, are supplied standard with a gas ballast valve, which permits high water vapour compatibility. Instead, for mod. RVP 21, the ballast valve can only be installed upon request.
The above described product devices combined with strong, compact construction make RVP series vacuum pumps especially suitable for continuous and heavy-duty use.
|
|
|

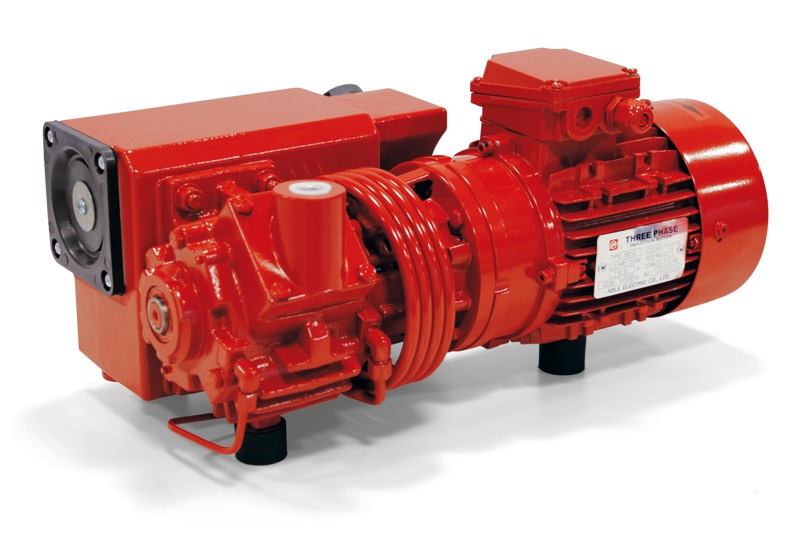

Oil-bath vacuum pump RVP 15
Product code: RVP15
|
|
|
Oil-bath vacuum pump RVP 21
Product codes: RVP21 RVP21Z
|
|
|
Oil-bath vacuum pump RVP 40
Product code: RVP40
|
|
|
Oil-bath vacuum pump RVP 60
Product code: RVP60
|
|
|
Oil-bath vacuum pump RVP 100
Product code: RVP100
|
|
|
Oil-bath vacuum pumps RVP 160 and RVP 200
Product codes: RVP160 RVP200
|
|
|
Oil-bath vacuum pumps RVP 250 and RVP 300
Product codes: RVP250 RVP300
|
|
|

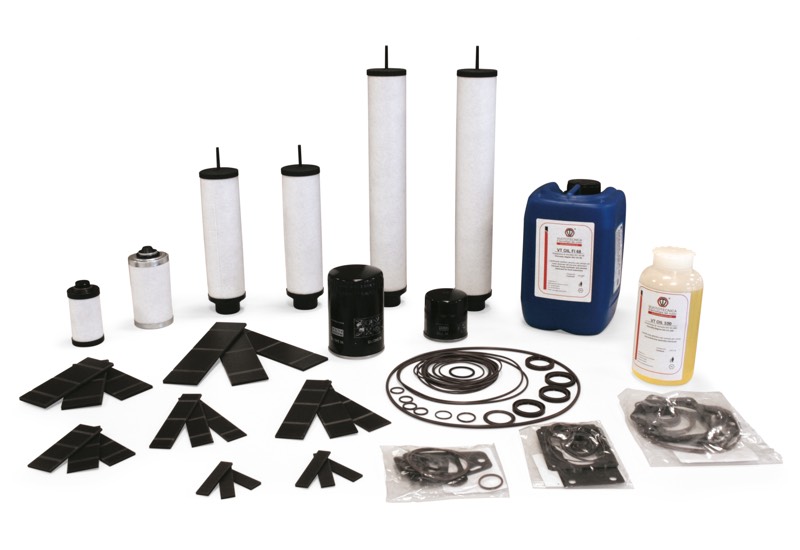

Lubricated vacuum pump accessories and spare parts
Product codes: 00VTL0210 00VTL0410 00VTL0510 00VTL1010 00VTL10F10 00VTL10FG10 00VTL15F10 00VTL15FG10 00VTL20F10 00VTL20FG10 00VTL25FG10 00VTL30FG10 00VTL35FG10 00VTL40G110 00VTL50G110 00VTL65G110 00VTL75G110 00VTL90G110 00VTL105G110 00VTL0610 00MV2010 00MV4010 00MV6010 00MV10010 00MV160R10 00MV200R10 00MV300R10 00KITVTL02 00KITVTL04 00KITVTL05 00KITVTL10 00KITVTL10F 00KITVTL10FG 00KITVTL15F 00KITVTL15FG 00KITVTL20F 00KITVTL20FG 00KITVTL25FG 00KITVTL30FG 00KITVTL35FG 00KITVTL40G1 00KITVTL50G1 00KITVTL65G1 00KITVTL75G1 00KITVTL90G1 00KITVTL105G1 00KITVTL06 00KITMV20 00KITMV40 00KITMV60 00KITMV100 00KITMV160R 00KITMV200R 00KITMV300R 100115 100215 100210 100310 100410 100510 100610 100710 FB5 FB10 FB20 FB25 FB30 FB40 FB50 FC10 FC20 FC25 FC30 FC35 FC40 FC50 FC60 MV200RA MV300R MV300RA 00VTL0011 00LPVTL99 00LPVTL40 00MV160R07 00MV200R07 00MV300R07 00VTL75G129 00VTL90G129 00VTL105G129 00MV2011 00MV4050 00MV6050 00MV10006 00MV160R06 00MV200R50 00MV300R50 VZ01 VZ02 ISO32 ISO68 ISO100 ISO150 ISO220 VTOIL32 VTOIL68 VTOIL100 VTOILFI68 VTOILFI100
|
|
|
Dry vacuum pumps VTS 2 and 4
These small lubrication-free rotary vane vacuum pumps have a suction flow rate of 2 and 4 m3/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication.
The rotor is cantilevered-fitted on the motor shaft, thus reducing overall dimensions to the minimum. The motor and the pump are cooled by the motor fan (surface cooling).
A filter that functions as a silencer is installed on the suction inlet.
We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations.
Vacuum pumps VTS 2 and 4 can also be supplied with single-phase electric motor.
Product codes: VTS2 VTS4
|
|
|
Dry vacuum pumps VTS 6 and 10
These lubrication-free rotary vane vacuum pumps have a suction flow rate of 6 and 10 m3/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication.
The rotor is cantilevered-fitted on the motor shaft, thus reducing overall dimensions to the minimum. The motor and the pump are cooled by the motor fan (surface cooling).
A filter that functions as a silencer is installed on the suction inlet.
We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations.
Vacuum pumps VTS 6 and 10 can also be supplied with single-phase electric motor.
Product codes: VTS6 VTS10
|
|
|
Dry vacuum pumps VTS 10/FG, 15/FG and 20/FG
These lubrication-free rotary vane vacuum pumps have a suction flow rate of 10, 15 and 20 m3/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication.
The pump rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump and the electric motor are, therefore, two independent unitsand fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
A filter that functions as a silencer is installed on the suction inlet.
We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTS10/FG VTS15/FG VTS20/FG
|
|
|
Dry vacuum pumps VTS 25/FG, 30/FG and 35/FG
These lubrication-free rotary vane vacuum pumps have a suction flow rate of 25, 30 and 35 m3/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication.
The pump rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump and the electric motor are, therefore, two independent unitsand fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
A filter that functions as a silencer is installed on the suction inlet.
We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTS25/FG VTS30/FG VTS35/FG
|
|
|
Dry vacuum pump accessories and spare parts
Product codes: 00VTS0210 00VTS0410 00VTS0610 00VTS1010 00VTS10F10 00VTS15F10 00VTS20F10 00VTS25F10 00VTS10FG10 00VTS15FG10 00VTS20FG10 00VTS25FG10 00VTS30FG10 00VTS35FG10 00VTS0211 00VTS0411 00VTS0215 00VTS0607 00VTS1011 00VTS10F15 00VTS0612 00VTS1020 00VTS10F19 00VTS25F05 00KITVTS02 00KITVTS04 00KITVTS06 00KITVTS10 00KITVTS10F 00KITVTS15F 00KITVTS20F 00KITVTS25F 00KITVTS10FG 00KITVTS15FG 00KITVTS20FG 00KITVTS25FG 00KITVTS30FG 00KITVTS35FG 100115 100210 100310 100410 FB5 FB10 FB20 FB28 FC10 FC20 FC25
|
|
|
Mini pump sets – General description
Mini pump sets are small independent vacuum-producing units with reduced size.
They are composed of:
- A small welded sheet steel tank with perfect vacuum seal.
- A low-flow rate dry or lubricated rotating vane vacuum pump.
- A mini digital vacuum switch for adjusting the maximum level of vacuum.
- A vacuum gauge for reading the level of vacuum.
- Switchgear enclosed in a special casing.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The level of vacuum, preset via the digital vacuum switch is automatically maintained in the tank.
Mini pump sets can also be supplied with single-phase or DC electric motors and they are suited for equipping fixed or mobile working units that require vacuum, such as:
- Trolleys with vacuum cups for fixing and transporting glass and crystals.
- Vacuum clamping systems for ski maintenance, marble processing and for polishing copper, pewter or silver objects.
- Hoists with vacuum cups for lifting television sets and household appliances for glass installation in door and window frames, for laying ceramic tiles, for feeding sheet metal into presses, etc.
|
|
|
Mini pump sets DO 06V ... and DO 10V ... with dry vacuum pumps
Product codes: DO06VVTS2 DO06VVTS2M DO06VVTS4 DO06VVTS4M DO06VVTS6 DO06VVTS6M DO10VVTS2 DO10VVTS2M DO10VVTS4 DO10VVTS4M DO10VVTS6 DO10VVTS6M
|
|
|
Mini pump sets DO 06V ... and DO 10V ... with lubrificated vacuum pumps
Product codes: DO06VVTL2 DO06VVTL2M DO06VVTL4 DO06VVTL4M DO06VVTL5 DO06VVTL5M DO10VVTL2 DO10VVTL2M DO10VVTL4 DO10VVTL4M DO10VVTL5 DO10VVTL5M
|
|
|
Mini pump sets DO 20V ...
Product codes: DO20VVTL5 DO20VVTL5M DO20VVTL10 DO20VVTL10M DO20VVTL10/FG DO20VVTL10/FGM DO20VVTL15/FG DO20VVTL15/FGM DO20VRVP15 DO20VRVP15M DO20VVTL20/FG DO20VVTL20/FGM DO20VRVP21 DO20VRVP21M
|
|
|
Horizontal pump sets – General description
As a standard, these pump sets are built with various capacities and they are composed of:
- A horizontal welded sheet steel tank with perfect vacuum seal.
- A rotary vane vacuum pump to be selected according to the required suctionflow rate and level of vacuum.
- A digital vacuum switch for adjusting the level of vacuum within which to operate.
- A vacuum gauge for a direct reading of the level of vacuum in the tank.
- A switchgear enclosed in a special plastic casing for tanks from 25 to 50 litresand in a watertight metal casing for tanks of 100 litres upwards.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The level of vacuum, preset via the digital vacuum switch is automatically maintained in the tank.
The pump operation can be both continuous or automatic.
Pump sets are normally used for handling particularly heavy or valuable loads since, in case of electricity failure, they allow the vacuum cups to maintain the grip for a certain amount of time, according to the tank capacity.
These pump sets are recommended for multi-point applications, to centralise vacuum.
These pump sets offer many advantages in energy consumption, since the pump operates only when required by the machine.
|
|
|
Horizontal pump sets DO 25V ... and DO 50V ...
Product codes: DO25VVTL5 DO25VVTL5M DO25VVTL10 DO25VVTL10M DO25VRVP15 DO25VRVP15M DO50VVTL5 DO50VVTL5M DO50VVTL10 DO50VVTL10M DO50VRVP15 DO50VRVP15M
|
|
|
Horizontal pump sets DO 100V ... and DO 150V ...
Product codes: DO100VVTL10/FG DO100VVTL10/FGM DO100VVTL15/FG DO100VVTL15/FGM DO100VRVP15 DO100VRVP15M DO100VVTL20/FG DO100VVTL20/FGM DO100VRVP21 DO100RVP21M DO150VVTL25/FG DO150VVTL30/FG DO150VVTL35/FG DO150VRVP40 DO150VVTL50/G1 DO150VRVP60
|
|
|
Horizontal pump sets DO 300V ... and DO 500V ...
Product codes: DO300VRVP60 DO300VRVP100 DO300VVTL105/G1 DO500VRVP100 DO500VVTL105/G1 DO500VRVP160 DO500VRVP200 DO500VRVP250 DO500VRVP300
|
|
|
Horizontal pump sets DO 1000V ...
Product codes: DO1000VRVP200 DO1000VRVP250 DO1000VRVP300
|
|
|
Horizontal safety pump sets – General description
Safety pump sets have been designed to centralise vacuum in all work environments such as hospitals, laboratories, etc. where vacuum must be guaranteed 24/7.
They are essentially composed of:
- A horizontal welded sheet steel tank with perfect vacuum seal.
- Two rotary vane vacuum pumps to be selected according to the required suctionflow rate and level of vacuum.
- A vacuum gauge for a direct reading of the level of vacuum in the tank.
- Two manual valves for vacuum interception, located between the pumps and the tank and one installed on the tank, for the exclusion or connection of the pump set on a user system.
- A cock for condensation drainage.
- A switchgear enclosed in a special watertight metal casing with switches for automatic or manual pump operation, an alarm device with sound and light signal, alarm-test buttons and hour-counter for counting the hours of actual operation of every single pump.
These safety pump sets normally provide for the operation of one pump with subsequent automatic insertion of the second one for larger consumptions and when, for whatever reason, the plant level of vacuum goes under the preset value.
The automatic timed inverter, located on the switchboard, accurately alternates the pump start-up, so that they are both subject to the same mechanical wear.
The switchboard and remote alarm systems operate when the plant level of vacuum is below the set safety value.
|
|
|
Horizontal safety pump sets DSO 300V ... and DSO 500V ...
Product codes: DSO300VRVP40 DSO300VVTL50/G1 DSO300VRVP60 DSO300VRVP100 DSO300VVTL105/G1 DSO500VVTL50/G1 DSO500VRVP60 DSO500VRVP100 DSO500VVTL105/G1 DSO500VRVP160 DSO500VRVP200
|
|
|
Horizontal safety pump sets DSO 1000V ...
Product codes: DSO1000VRVP60 DSO1000VRVP100 DSO1000VVTL105/G1 DSO1000VRVP160 DSO1000VRVP200 DSO1000VRVP250 DSO1000VRVP300
|
|
|
Vertical pump sets – General description
As a standard, these pump sets are built with various capacities and they are composed of:
- A vertical welded sheet steel tank with perfect vacuum seal.
- A rotating vane vacuum pump to be selected according to the required suction capacity and vacuum degree.
- A vacuum switch for adjusting the vacuum level within which to operate.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- A switchgear enclosed in a special watertight metal casing.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The level of vacuum, preset via the mini vacuum switch is automatically maintained in the tank. The pump operation can be both continuous or automatic.
The level of vacuum, preset via the mini vacuum switch is automatically maintained in the tank. The pump operation can be both continuous or automatic. These pump sets are normally used for interconnecting several vacuum-operated machines and, for safety reasons, for vacuum handlers since, in case of electricity failure, they allow the vacuum cups to maintain the grip for an amount of time proportional to the tank capacity.
As for energy consumption, in both cases these pump sets offer many advantages, since the pump operates only to restore vacuum in the tank within the preset values and its interventions depend exclusively on the quantity of air that is actually sucked at the service.
|
|
|
Vertical pump sets DV 150V ... and DV 300V ...
Product codes: DV150VVTL25/FG DV150VVTL30/FG DV150VVTL35/FG DV150VRVP40 DV150VVTL50/G1 DV150VRVP60 DV300VRVP40 DV300VVTL50/G1 DV300VRVP60 DV300VRVP100 DV300VVTL105/G1 DV300VRVP160 DV300VRVP200
|
|
|
Vertical pumpsets DV 500V ... and DV 1000V ...
Product codes: DV500VRVP160 DV500VRVP200 DV500VRVP250 DV500VRVP300 DV1000VRVP200 DV1000VRVP250 DV1000VRVP300
|
|
|
Vertical safety pump sets – General description
Safety pump sets have been designed to centralise vacuum in all work environments such as hospitals, laboratories, etc. where vacuum must be guaranteed 24/7.
They are essentially composed of:
- A vertical welded sheet steel tank with perfect vacuum seal.
- Two rotary vane vacuum pumps to be selected according to the required suctionflow rate and level of vacuum.
- A vacuum gauge for a direct reading of the level of vacuum in the tank.
- Two manual valves for vacuum interception, located between the pumps and the tank and one installed on the tank, for the exclusion or connection of the pump set on a user system.
- A cock for condensation drainage.
- A switchgear enclosed in a special watertight metal casing with switches for automatic or manual pump operation, an alarm device with sound and light signal, alarm-test buttons and hour-counter for counting the hours of actual operation of every single pump.
These safety pump sets normally provide for the operation of one pump with subsequent automatic insertion of the second one for larger consumptions and when, for whatever reason, the plant level of vacuum goes under the preset value.
The automatic timed inverter, located on the switchboard, accurately alternates the pump start-up, so that they are both subject to the same mechanical wear.
The switchboard and remote alarm systems operate when the plant level of vacuum is below the set safety value.
|
|
|
Vertical safety pumpsets DSV 150 ... and DSV 300 ...
Product codes: DSV150VVTL10/F DSV150VVTL15/F DSV150VRVP15 DSV150VVTL20/F DSV150VRVP21 DSV150VVTL25/FG DSV150VVTL30/FG DSV150VVTL35/FG DSV300VRVP40 DSV300VVTL50/G1 DSV300VRVP60 DSV300VRVP100 DSV300VVTL105/G1
|
|
|
Vertical safety pump sets DSV 500V ... and DSV 1000V ...
Product codes: DSV500VRVP60 DSV500VRVP100 DSV500VVTL105/G1 DSV500VRVP160 DSV500VRVP200 DSV1000VRVP160 DSV1000VRVP200 DSV1000VRVP250 DSV1000VRVP300
|
|
|
Vertical safety pump sets DSV 2000V ...
Product codes: DSV2000VRVP200 DSV2000VRVP250 DSV2000VRVP300
|
|
|
Special pump set products
Product codes: DV300VRVP300FS50BP DS3V500VRVP100 DO50VRVP40 DO500RVP200FS
|
|
|
Support frames for two vacuum pumps
This frame is made with profiled steel and varnished with special weather-resistant paints.
00 DSV 18 is suited for assembling two vacuum pumps while 00 DSV 16 is suited for assembling two vacuum pumps and their switchgear.
Product codes: 00DSV16 00DSV18
|
|
|
Support frames for three vacuum pump
This frame is made with profiled steel and varnished with special weather-resistant paints.
00 DSV 22 is suited for assembling three vacuum pumps while 00 DSV 20 is suited for assembling three vacuum pumps and their switchgear.
Product codes: 00DSV20 00DSV22
|
|
|
Supports for switchgear
Product codes: 00DV16 00DSV08 00DSV33 00DSO07 00DSO08
|
|
|
Vacuum pump and pump set manifolds
These manifolds are made to distribute the vacuum generated by the pumps and pump sets to several services.
They are composed of a varnished steel tubular onto which the interception valves and the connections to the level of vacuum reading and control devices are installed.
The manifolds described in these pages are standard. Upon request, they can be supplied with different shapes and sizes.
Product codes: COLL0103 COLL0104 COLL0105 COLL0106 COLL0107 COLL0203 COLL0205 COLL0207 COLL0303 COLL0305 COLL0307
|
|
|
Mini pump set switchgear
The mini pump set switchgear is enclosed in a special plastic casing. It can automatically manage a vacuum pump with a maximum power of 5.5 KW with AC and can also maintain the level of vacuum in the tank, set with the digital vacuum switch installed on the control panel.
It is equipped with a remote control switch with thermal protection, a fuse, digital vacuum switch, a transformer for low voltage auxiliary command, a selector for automatic or manual pump operation, an emergency button and signalling lamps.
Product codes: DO0698V DO0697V
|
|
|
Switchgear for pump sets with one pump
The pump set switchgear is enclosed in a special watertight metal casing and can manage a vacuum pump with a power up to 7.5 KW as well as maintain the level of vacuum in the tank, set with the digital vacuum switch.
It is equipped with a remote control switch with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switch for the automatic or manual pump operation, an easily-programmable digital vacuum switch suitable for setting and controlling all vacuum functions, an hour-counter for measuring the actual pump operation time and signalling lamps.
Product codes: DO10098V DO10097V
|
|
|
Switchgear for pump sets with two pumps
The pump set switchgear is enclosed in a special watertight metal casing and can manage two vacuum pumps, each with a power up to 7.5 KW as well as maintain the level of vacuum in the tank, set with the digital vacuum switch.
It is equipped with two remote control switches with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switches for the automatic or manual pump operation, an easily-programmable digital vacuum switch suitable for setting and controlling all vacuum functions, two hour-counters for measuring the actual pump operation time and signalling lamps.
Product codes: D2V15095V
|
|
|
Switchgear for safety pump set with two pumps
The pump set switchgear, is enclosed in a special watertight metal casing andautomatically manages two vacuum pumps, each with a power up to 7.5 KW and maintains the level of vacuum in the tank, set with the two easily-programmable digital vacuum switches, suitable for setting and controlling all vacuum functions.
It is equipped with two remote control switches with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switches for the automatic or manual pump operation, two digital vacuum switches, two hour-counters for measuring the actual pump operation time, an alarm siren with acoustic and lit signalling, a key selector for any necessary exclusion of the siren, test buttons and signalling lamps.
The switchgear is normally provides for the operation of one pump with subsequent automatic insertion of the second one for larger consumptions and when, for whatever reason, the plant level of vacuum goes under the preset value.
The automatic timed inverter precisely alternates priority pump start-up of the services so that they are subjected to equal mechanical wear. The switchboard and remote alarm systems operate when the plant level of vacuum is below the set safety value.
Product codes: DSO30097V
|
|
|
Switchgear for safety pump sets with three pumps
The pump set switchgear, is enclosed in a special watertight metal casing andautomatically manages three vacuum pumps, each with a power up to 7.5 KW and maintains the level of vacuum in the tank, set with the two easily-programmable digital vacuum switches, suitable for setting and controlling all vacuum functions.
It is equipped with three remote control switches with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switches for the automatic or manual pump operation, three digital vacuum switches, two hour-counters for measuring the actual pump operation time, an alarm siren with acoustic and lit signalling, a key selector for any necessary exclusion of the siren, test buttons and signalling lamps. The switchgear is normally provides for the operation of one pump with subsequent automatic insertion of the other two for larger consumptions and when, for whatever reason, the plant level of vacuum goes under the preset value.
The automatic timed inverter precisely alternates priority pump start-up of the services so that they are subjected to equal mechanical wear. The switchboard and remote alarm systems operate when the plant level of vacuum is below the set safety value.
Product codes: DSO30098V
|
|
|

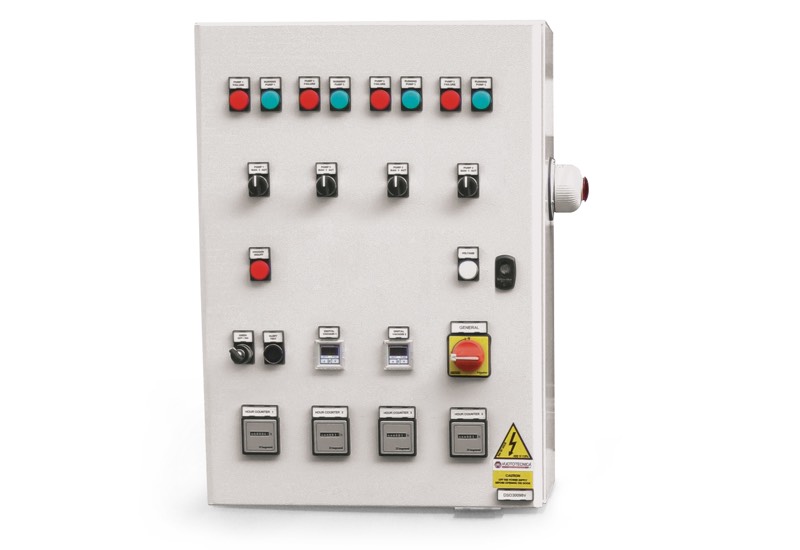

Switchgear for safety pump set with four pumps
The safety pump set switchgear is enclosed in a special watertight metal casing and it automatically manages four vacuum pumps, each with a power up to 7.5 KW, and maintains the level of vacuum in the tank, set with the two easily-programmable digital vacuum switches, suitable for setting and controlling all vacuum functions. It is equipped with four remote control switches with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switches for the automatic or manual pump operation, two digital vacuum switches, four hour-counters for measuring the actual pump operation time, an alarm siren with acoustic and lit signalling, a key selector for any necessary exclusion of the siren, test buttons and signalling lamps.
These switchgears normally provide for the operation of two pumps and the subsequent automatic insertion of the other two for larger consumptions and when, for whatever reason, the plant level of vacuum goes below the preset value.
The automatic timed inverter precisely alternates priority pump start-up of the services so that they are subjected to equal mechanical wear.
The switchboard and remote alarm systems operate when the plant level of vacuum is below the set safety value
Product code: DSV200099V
|
|
|
Switchgear for single pump
The need to use the same vacuum pump in various spots in the work environment,such as, for example, a shipyard, has led us to creating this mobile switchgear that allows for polarity reversal in presence of current, as well as for time setting pump operation and the automatic start-up restoration in case of accidental black-out.
The switchgear is enclosed in a special watertight metal casing and it is composed of fuses, remote control switches with thermal protection and a transformer for low voltage auxiliary command power supply. The following are instead installed on the casing lid:
- A line switch with indicator light
- A changeover switch for pump start-up with indicator light
- A changeover switch for polarity reversal
- An emergency button
- A timer for setting the duration of pump operation
- An hour-counter for counting the actual pump operation time
- A malfunction warning light.
This switchgear is supplied in special metal watertight casing and can manage pumps with power up to 7.5 Kw.
Product code: DO10094
|
|
|
Switchgear equipped with touch screen operator panel and plc for pump sets and safety pump sets with two or more pump
The new electrical equipment consists of a touch screen, which is a special electronic device that is the result of combining a screen and a digitizer that allow the user to interact with a graphical interface using their fingers or specific objects.
The touch screen operator panels installed on our Pump sets are human machine interface systems, or rather devices that allow people to control our equipment very easily.
The electrical panel contains command and control equipment, collects the digital signals coming from the vacuum switch to power the vacuum pumps when necessary and is designed for a single-phase 230 Vac 50 Hz and three-phase 400 Vac 50 Hz power supply with an IP 54 protection rating.
Inside is a PLC that manages all the control logics for manual and automatic operation.
Product codes: DO10098VPLC DO10097VPLC DSO30097VPLC
|
|
|
