Vacuum valves and solenoid valves

Suction valves for vacuum press bags

Suction valves for vacuum press bags

The suction valves described on this page have been designed for a quick vacuum connection on press bags for composite fibre products.
These valves are composed of a steel distributor, to be inserted inside the bag, equipped with a cam housing suitable for the quick coupler for the vacuum connection. The latter is made with reeded and anodised aluminium and is easily coupled with the distributor by simply rotating it on its axis by 90°, once it has been inserted.
A silicone seal, to be placed between the two elements and the press bag, guarantees a perfect vacuum seal. Manual two-way valves, quick couplers or simply flexible pipe fittings can be assembled onto these valves.
They are currently available in the two versions indicated in the table, but can be provided in different sizes and shapes upon request for a minimum amount.
Maximum temperature of use: 220 °C
Product codes: VSS3/8 VSS1/2

4.01
CAD files on TraceParts
Image zoom
Go to the top Go down
Suction valves for resin infusion moulds

Suction valves for resin infusion moulds

Once laid on the resin infusion mould connections, these suction valves allow a quick vacuum connection and guarantee a perfect seal.
They are made with silicone rubber, while their support is made with anodised aluminium. Manual two-way valves, quick couplers or simply flexible pipe fittings can be assembled onto these valves.
They are available in the two versions shown below, but can be supplied in different sizes and shapes upon request.
Product codes: 088515S1/2 088515S3/4

4.02
CAD files on TraceParts
Image zoom
Go to the top Go down
Plunger valves

Plunger valves

Plunger valves are composed of a natural colour or chrome-plated cylindrical brass body, depending on the items, of a steel plunger with a conical valve, a thrust spring, a nylon disc whose task is to thrust the spring onto a larger contact surface, thus avoiding unsightly prints on the load to be gripped.
Connected to vacuum, they are normally closed.
They activate suction, thus creating a vacuum, only when the plunger is in contact with the gripping surface.
They are also available in various versions, all suitable for our vacuum cups.
Product codes: 190110 190111 190112 190210 190310 190410

4.03
CAD files on TraceParts
Image zoom
Go to the top Go down
Mechanically operated valves

Mechanically operated valves

These valves are composed of an anodised aluminium body, a steel pin solidly connected to a conical shutter and of a thrust spring.
Connected to vacuum, they are normally closed.
They activate suction, thus creating vacuum, only when the pin is activated by the cams or any other mechanical device.
They can be used as an alternative to plunger valves when these cannot be assembled onto the vacuum cups.
Product code: 190230

4.04
CAD files on TraceParts
Image zoom
Go to the top Go down
Valves with ball shutter

Valves with ball shutter

Valves with ball shutters activate suction, creating vacuum in the cups on which they are applied, only when the load to be held activates the sealing shutter.
They are made of an anodised aluminium body, a nylon ball shutter, a calibrated thrust spring and a threaded brass closing plug.
When properly calibrated, they guarantee a perfect vacuum seal.
They are recommended for making vacuum operated clamping surfaces.
They can be supplied in different sizes and shapes upon request and for a minimum quantity to be defined in the order.
Product code: 220110

4.05
CAD files on TraceParts
Image zoom
Go to the top Go down
Shut-off valves

Shut-off valves

These are special one-way valves that, when properly calibrated, allow a certain quantity of fluid to go through; afterwards, if the fluid continues to go through, they automatically close.
These shut-off valves have been specially designed to be applied on the cups and, in case of lack of objects to be gripped, of defective grips or leaks, they automatically deactivate suction, thus preventing any reduction of the level of vacuum on the other gripping cups.
They are provided calibrated and commissioned, ready to be installed. They are made with anodised aluminium and can be supplied in different shapes and sizes upon request and for a minimum quantity to be defined in the order.
Product codes: 140105 140110 140115 140210 140310 140510 140111 140211 140311

Image zoom
Go to the top Go down
Check valves

Check valves

These one-way valves are made with bronze and brass with a seal in NBR nitrile rubber or, upon request, in Viton®, only for series 10 ... 11.
To ensure a practical assembly they are available in two versions: horizontal and vertical.
Fitted on the vacuum pump suction inlet, as soon as the latter stop, these valves prevent the air from returning in the plant (piping, tanks, autoclaves, vacuum gripping systems, vacuum cups, etc.), guaranteeing a perfect seal and preventing the oil from returning into the pump stator, which would cause considerable damages.
Therefore, check valves are mandatory on all vacuum pumps with lubrication that do not have them built-in.
Product codes: 100210 100310 100410 100510 100610 100710 100810 100111 100211 100311 100411 100511 100611 100711 100811

4.08
CAD files on TraceParts
Image zoom
Go to the top Go down
Membrane check valves

Membrane check valves

These valves have the same features of the previously described check valves, but they are made with anodised aluminium, which makes them particularly light. The seal is guaranteed by an EPDM membrane instead of the metal shutter with NBR seal.
Thanks to these features and their modern design, they are recommended for pneumatic vacuum generators and, of course, on vacuum pumps.
Product codes: 100115 100215 100315 100415 100515 130111 130211 130311

4.09
CAD files on TraceParts
Image zoom
Go to the top Go down
Manual 2-way miniature vacuum valves

Manual 2-way miniature vacuum valves

These small manual valves are suited for intercepting vacuum on vacuum cup holders and any small utility in which solenoid valves cannot be installed.
They feature a hexagonal nickel-plated brass body, a chromed brass ball shutter and a seal in plastic material to guarantee a perfect seal.
A lever on the ball shutter, rotated by 90°, allows opening or closing the valve with no effort.
Product codes: 100115 100215 100315 100415 100515 130111 130211 130311

4.09
CAD files on TraceParts
Image zoom
Go to the top Go down
Manual 2-way vacuum valves

Manual 2-way vacuum valves

These manual valves are used for intercepting vacuum in all those plants where solenoid valves cannot be installed.
They feature a die-cast nickel-plated brass body, a chromed brass ball shutter and Teflon® seals to guarantee perfect seal even at high temperatures.
A lever on the ball shutter, manually rotated 90°, allows opening or closing the valve precisely and with no effort.
Product codes: 130110 130210 130310 130410 130510 130610 130710 130810 130910

4.10
CAD files on TraceParts
Image zoom
Go to the top Go down
Manual 3-way vacuum valves

Manual 3-way vacuum valves


Product codes: 130115 130215 130315 130415 130515 130615 130715

4.11
CAD files on TraceParts
Image zoom
Go to the top Go down
Servo-controlled 3-way vacuum valves

Servo-controlled 3-way vacuum valves

These 2-position, 3-way valves feature pneumatically activated conical shutters.
They can be used normally either closed or open.
They are recommended in all the cases that require a quick exchange between the vacuum pump suction and the air inlet into the circuit for a quick restoration of the atmospheric pressure.
They are composed of an anodised aluminium body, two vulkollan® shutters assembled onto a stainless steel stem, a membrane for servo-control made with special compounds and a thrust spring for the shutter return.
These valves allow reducing frictions and internal dynamic stresses to the minimum. The result being a high response speed and a guarantee of long lasting duration.
Technical features
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070131 070231 070331 070431 070531 070631 070831 070931

Image zoom
Go to the top Go down
3-Way vacuum solenoid pilot valves

3-Way vacuum solenoid pilot valves

These direct-drive valves have been specially designed for vacuum and are normally closed.
They are composed of an anodised aluminium body, where the connections and the passage orifices are located, and of an actuator which is activated by an electric coil.
The solenoid pilot valve shutter in NBR nitrile rubber or Vulkollan®, is an integral part of the actuator mobile core.
Both the orifices of the 2-way solenoid pilot valves have the same size, while those of the 3-way ones have a 3mm outlet diameter, obtained through the tube. The very low reaction time allows carrying out a very high number of cycles per minute.
The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 20 V.A. with AC and 18 W with DC.
The electric coil can be rotated by 360°.
The connector can be rotated by 180° on the coil and can be supplied, upon request, with LED lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
Technical features
Working pressure: from 1 to 1500 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070116 070216 070316

Image zoom
Go to the top Go down
2-Way vacuum solenoid pilot valves

2-Way vacuum solenoid pilot valves


Product codes: 070120 070220 070320

Image zoom
Go to the top Go down
Direct drive 2-way vacuum solenoid valves

Direct drive 2-way vacuum solenoid valves

These state of the art solenoid valves feature minimal overall dimensions and high volumetric efficiency and high response speed at any vacuum level.
They are the result of an attentive choice of materials, state of the art constructive techniques and of the in-depth knowledge of our technicians.
This series of solenoid valves is patented.
The DDN solenoid valves are direct drive, two-way, two-position valves with direct drive, double shutter and they are normally closed.
They are composed of hot pressed brass body where the connections are located, an internal mechanism with double shutter and of an actuator activated by an electric coil. The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 with inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 20 V.A. with AC and 18 W with DC (except for DDN 25 which cannot be activated with DC).
The electric coil can be rotated by 360°.
The connector can be rotated by 180° on the coil and can be supplied, upon request, with LED lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
For a correct operation, we recommend installing the solenoid valve upside-down.
DDN solenoid valves are particularly indicated for degassers, autoclaves, vacuum thermo-welders and in all applications where suction has to be controlled separately from the air inlet into circuit.
Technical features
Working pressure: from 0.5 to 1500 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: DDN14 DDN25

4.21
CAD files on TraceParts
Image zoom
Go to the top Go down
Servo-controlled 3-way vacuum solenoid valves

Servo-controlled 3-way vacuum solenoid valves

The 3-way vacuum solenoid valves in this series are 2-position valves with pneumatically servo-controlled conical shutters.
They can be used normally either closed or open.
They are composed of an anodised aluminium body, two Vulkollan® shutters assembled onto a stainless steel stem, a membrane for servo-control made with special compounds and a thrust spring for the shutter return; an actuator activated by an electric coil managed the compressed air supply.
These valves allow reducing frictions and internal dynamic stresses to the minimum. The result being a high response speed and a guarantee of long lasting duration. The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 20 V.A. in c.a. e 18 W in c.c.
The electric coil can be rotated by 360°.
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal. 3-way vacuum solenoid valves are usually used for intercepting vacuum on feeders and cup stackers, robots, sheet feeders, sack openers and in all those cases where a quick response is needed between suction and the air inlet into the circuit, for a quick restoration of the atmospheric pressure.
Technical features
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070111 070211 070311 070411 070511 070611

Image zoom
Go to the top Go down
Servo-controlled 3-way vacuum solenoid valves with two electric coils

Servo-controlled 3-way vacuum solenoid valves with two electric coils

These solenoid valves have the same function and the same structure as the previously described three-way valves.
Even their structure is the same, but their distinctive features are the two coils that with a simple electric impulse exchange the shutter positions and keep them in this position till the next impulse even in absence of compressed air at the servo control and of electric current.
This is the reason why their use is especially recommended in all those cases requiring maximum connection security at the vacuum source, even in the absence of electrical and pneumatic power supply.
The standard electric coils are fully plastic-coated in synthetic resin, watertight, insulation class F (up to 155°C) as per standard VDE, with 6.3 mm three-terminal electrical connections for connectors in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 with connector inserted.
Tolerance permitted on the nominal voltage value: ±10%.
Maximum absorption: 8 - 20 V.A. with AC and 6.5 - 18 W with DC.
The electric coils can be rotated 180°. The connectors can be rotated 180° on the coils and can be supplied, upon request, with LED lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
Technical features
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070151 070251 070351 070451 070551 070651 070851 070951

Image zoom
Go to the top Go down
Direct drive 3-way vacuum solenoid valves

Direct drive 3-way vacuum solenoid valves

These direct drive three-way, two-position vacuum solenoid valves feature conical shutters servo-controlled by the vacuum.
They are normally closed as standard, but they can be supplied normally open upon request.
They are composed of an anodised aluminium body where the connections are located, two silicone shutters assembled onto a stainless steel stem and a membrane in special reinforced compound. An actuator activated by an electric coil manages the vacuum at the servo-control. The operating principle of these solenoid valves is based on the pressure differential between the vacuum pump or generator and the pressure of the suctioned air.
By addressing this “differential pressure” to the servo-control via the actuator, the shutters can be controlled without compressed air or springs.
Due to their operating principle, they are not recommended on plants with rough vacuum levels (below 850 absolute mbar, equal to 15 % vacuum).
The lack of springs, frictions and internal dynamic stresses favours a high response speed and guarantees long lasting operation.
The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155°C) compliant with VDE standards, with 6.3 mm three-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 with connector inserted.
Tolerance permitted on the nominal voltage value: ±10%.
Maximum absorption: 20 V.A. with AC and 18 W with DC.
The electric coil can be rotated 360°. The connector can be rotated 180° on the coil and can be supplied, upon request, with LED lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
The solenoid valves in this series, along with the uses described for the 07 .. 11 series, can be used on plants with no compressed air.
The solenoid valve must be always chosen according to the flow rate and, therefore, to the vacuum pump or generator suction connection.
Technical features
Operating pressure: from 0.5 to 850 absolute mbar
Temperature of suctioned fluid: from -5 to +60°C
Product codes: 070340NC 070340NO 070440NC 070440NO 070540NC 070540NO 070640NC 070640NO

Image zoom
Go to the top Go down
Electric coils

Electric coils

Electric coils are windings of copper wire on nylon coils fully plasticised in synthetic resin which activate the electromagnetic actuators with which the solenoid valves are provided. Crossed by an electric current, these coils generate a magnetic field which activates the mobile core inside the actuators; the mobile core features a built-in or fixed shutter which cause the valve commutation by opening and closing their mouths.
The standard electric coils are fully plasticised with synthetic resin, tight execution, insulation class F (up to 155°C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree: IP 54; IP 65 with connector inserted.
Tolerance permitted on the nominal voltage value: ±10%.
Tolerance permitted on the frequency value: ±5%
Room temperature: from -10 to +45°C
Fluid temperature: from -10 to +95°C
Electric absorption: 8 - 20 V.A. with AC and 6.5 - 18 W with DC.
The electric coils can be rotated 360°
Product codes: 0007172 0007173 000703N 000704N 000706N 0007256N 0007258N 0007259N

Image zoom
Go to the top Go down

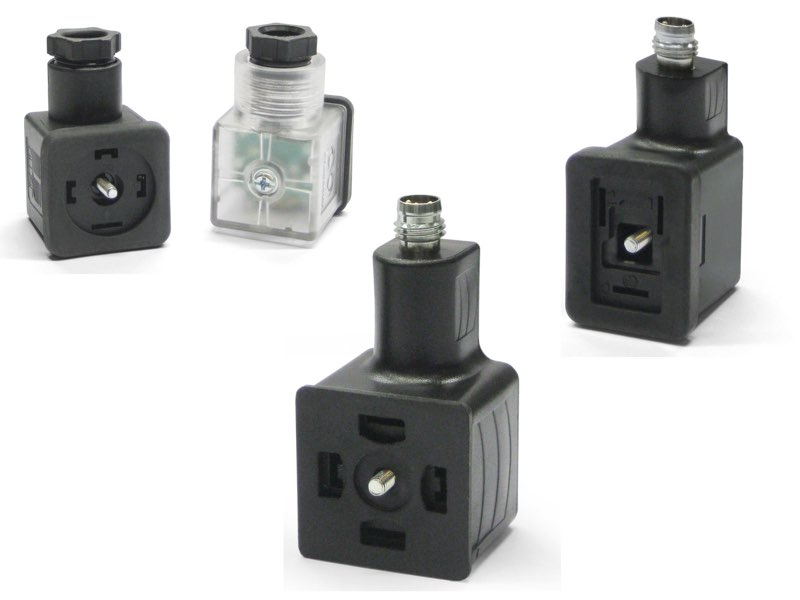

Connectors for coils

Connectors for coils

Connectors are fundamental for bringing electric current to the solenoid valve coils.
They are available in the simple plug version installed as standard and, upon request, with LEDs to signal the presence of voltage, with anti-interference circuits, protection devices against overvoltage and polarity reversal.
When correctly installed, all connectors provide full protection against water jets, according to EN 60529 standards (protection class IP 65).
Moreover, they meet VDE 0110-1 /89 standards, working voltage up to 250 V, overvoltage category II, Degree of use 3, regarding insulation class.
In all contacts, a snap joint between contact holders and the external protection guarantees a safe locking and easy assembly.
Safe locking is essential for guaranteeing the operator full protection when handling the connector.
The contact holder can be easily extracted from its casing simply using a screwdriver.
This operation also allows orienting the earthing contact in the desired direction.
Product codes: 0007174 0007260 000763 0007101 0007186 0007221 0007222 0007223

Image zoom
Go to the top Go down

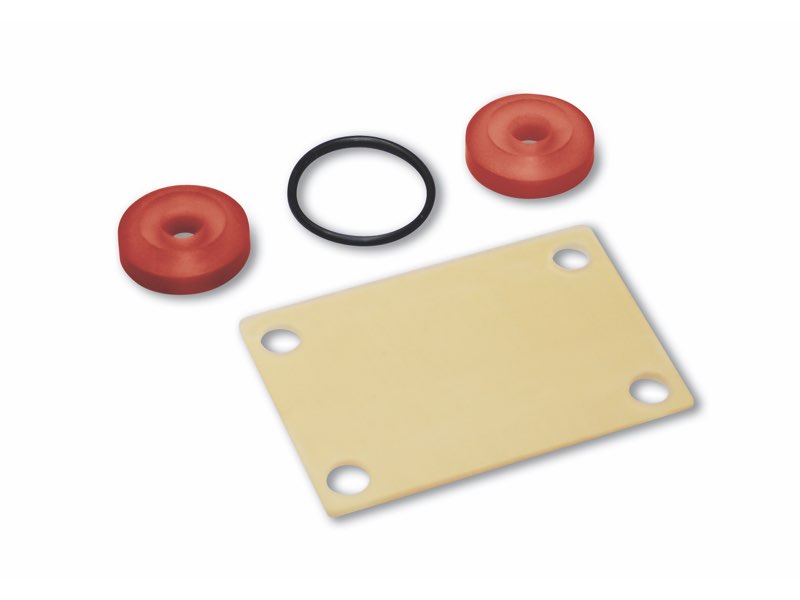

Sealing kit and pilot membranes for vacuum valves and solenoid valves

Sealing kit and pilot membranes for vacuum valves and solenoid valves

Sealing kits are composed of a membrane, shutters and standard O-rings installed on our compressed air and vacuum three-way valves and solenoid valves.
In presence of very hot fluids (up to 250 °C) or corrosive fluids, we can supply sealing kits in special compounds. Please contact our technical department.
Product codes: 0007104 0007105 0007177 0007229 0007230 0007296 0007231 0007297 0007232 0007298 0007267 0007268 0007287 0007269 0007288 0007270 0007289 0007380 0007384 0007271 0007272 0007290 0007273 0007291 0007274 0007292 0007372 0007382 0007275 0007276 0007293 0007277 0007294 0007278 0007295 0007381 0007385 0007279 0007280 0007281

4.41
CAD files on TraceParts
Image zoom
Go to the top Go down
Servo-controlled 3-way vacuum solenoid valves with low absorption electric coil

Servo-controlled 3-way vacuum solenoid valves with low absorption electric coil

The three-way vacuum solenoid valves in this series are two-position valves with pneumatically servo-controlled conical shutters.
They can be used normally either closed or open.
They are composed of an anodised aluminium body, two Vulkollan® shutters assembled onto a stainless steel stem, a membrane for servo-control made with special compounds and a thrust spring for the shutter return; a solenoid pilot valve activated by a built-in electric coil managed the compressed air supply.
These valves allow reducing frictions and internal dynamic stresses to the minimum. The result being a high response speed and a guarantee of long lasting duration.
The electric coils of the solenoid pilot valve are fully plastic-coated in synthetic resin, watertight, insulation class F (up to 155°C) as per standard VDE, with 3 mm two-terminal electrical connections for connectors in compliance with EN 175301-803(ex DIN 43650) - C.
Protection degree IP 54; IP 65 with connector inserted.
Available for voltages 12-24V/50-60Hz and 12-24VDC.
Tolerance permitted on the nominal voltage value: ±10%.
Maximum electric power: 2 W
The connector can be rotated 180° on the coil and can be supplied, upon request, with LED lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
A push-button device, built-in the solenoid pilot valve, allows manually opening and closing the solenoid valve.
The 3-way vacuum solenoid valves are used for vacuum interception on power supply units and suction palletisers, robots, feeders, bag opening units and in all those cases where rapid exchange between pump suction for vacuums and air supply into the circuit is necessary for quick restoration of atmospheric pressure.
Technical features
Operating pressure: from 0.5 to 3000 absolute mbar
Servo-control pressure: see table
Temperature of suctioned fluid: from -5 to +60°C
Product codes: 070113 070213 070313 070413 070513 070613 070813 070913

Image zoom
Go to the top Go down
Servo-controlled 3-way vacuum solenoid valves with bistable impulse solenoid pilot valve and with low absorption electric coil

Servo-controlled 3-way vacuum solenoid valves with bistable impulse solenoid pilot valve and with low absorption electric coil

These solenoid valves have the same function and the same structure as the previously described three-way valves.
Even their structure is the same; what differentiates them are the bistable impulse solenoid pilot valve powered by a low absorption fitted electrical coil which, with a simple electrical impulse, exchanges the shutter positions and keeps them there even in absence of electricity, until it receives a new impulse of opposite polarity. For this reason, they can only be supplied with direct current electric coils.
Their use is especially recommended in all those cases requiring maximum connection security at the vacuum source, even in the absence of electrical power supply.
The electric coils of the solenoid pilot valve are fully plastic-coated in synthetic resin, watertight, insulation class F (up to 155°C) as per standard VDE, with 3 mm two-terminal electrical connections for connectors in compliance with EN 175301-803(ex DIN 43650) – C. Protection degree IP 54; IP 65 with connector inserted.
Available for voltages 12-24VDC.
Tolerance permitted on the nominal voltage value: ±10%.
Maximum electric power: 1 W
The connector can be rotated 180° on the coil and can be supplied, upon request, with LED lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
The push-button device for their manual activation cannot be installed on these solenoid valves.
Technical features
Operating pressure: from 0.5 to 3000 absolute mbar
Servo-control pressure: see table
Temperature of suctioned fluid: from -5 to +60°C
Product codes: 070153 070253 070353 070453 070553 070653 070853 070953

Image zoom
Go to the top Go down
Direct drive 3-way vacuum solenoid valves with low absorption electric coil

Direct drive 3-way vacuum solenoid valves with low absorption electric coil

These direct drive three-way, two-position vacuum solenoid valves feature conical shutters servo-controlled by the vacuum.
They are normally closed as standard, but they can be supplied normally open upon request.
They are composed of an anodised aluminium body where the connections are located, two silicone shutters assembled onto a stainless steel stem and a membrane in special reinforced compound. A solenoid pilot valve activated by a built-in electric coil manages the vacuum at the servo-control. The operating principle of these solenoid valves is based on the pressure differential between the vacuum pump or generator and the pressure of the suctioned air. By addressing this “differential pressure” to the servo-control via the solenoid pilot valve, the shutters can be controlled without compressed air or springs.
Due to their operating principle stated above, they are not recommended on plants with rough vacuum levels (below 850 absolute mbar, equal to 15 % vacuum).The lack of springs, frictions and internal dynamic stresses favours a high response speed and guarantees long lasting operation.
The electric coils of the solenoid pilot valve are fully plastic-coated in synthetic resin, watertight, insulation class F (up to 155°C) as per standard VDE, with 3 mm two-terminal electrical connections for connectors in compliance with EN 175301-803 (ex DIN 43650) - C.
Protection degree IP 54; IP 65 with connector inserted.
Available for voltages 12-24V/50-60Hz and 12-24VDC.
Tolerance permitted on the nominal voltage value: ±10%.
Maximum electric power: 2 W
The connector can be rotated 180° on the coil and can be supplied, upon request, with LED lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal. A push-button device, built-in the solenoid pilot valve, allows manually opening and closing the solenoid valve.
The solenoid valves in this series, along with the uses described for the 07 .. 11 series, can be used on plants with no compressed air.
The solenoid valve must be always chosen according to the flow rate and, therefore, to the vacuum pump or generator suction connection.
Technical features
Operating pressure: from 0.5 to 850 absolute mbar
Temperature of suctioned fluid: from -5 to +60°C
Product codes: 070343NC 070343NO 070443NC 070443NO 070543NC 070543NO

Image zoom
Go to the top Go down
3-Way vacuum solenoid valves with bistable impulse solenoid pilot valve and with low absorption electric coil

3-Way vacuum solenoid valves with bistable impulse solenoid pilot valve and with low absorption electric coil

These solenoid valves have the same functions and structure as the previously described ones.
Their distinctive feature is a bistable impulse solenoid valve activated by a built-in low absorption electric coil which, at a simple electric impulse, exchanges the shutter position even in absence of electricity, until it receives a new impulse of opposite polarity. For this reason, they can only be supplied with DC electric coils.
They are particularly recommended in all those cases that require a safe connection to the vacuum source, even in absence of electricity.
The electric coil of the solenoid pilot valve is fully plasticised plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex 43650)-C.
Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 1 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
The push-button device for their manual activation cannot be installed on these solenoid valves.
Technical features
Working pressure: from 0.5 to 850 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070363NC 070363NO 070463NC 070463NO 070563NC 070563NO

Image zoom
Go to the top Go down
Multi-function modules with built-in vacuum solenoid valves

Multi-function modules with built-in vacuum solenoid valves

The needs of technical designers in the packaging sector and in the automation sector in general to have more vacuum combined with different functions in the smallest possible space has led us to design and implement this new series of multi-function modules.
Each module has two internal solenoid valves built inside it. Their ducts house the seats for the flow control valves, which can be operated externally by means of special knobs. Various connections made at different points allow for connection of the module to instruments for reading and checking the level of vacuum, such as vacuum gauges, vacuum switches, transducers, etc.
There are three modules currently available:
- Module A: the basic module with two integrated 1”1/2 and 1” solenoid valves, two flow regulators and several additional connections.
- Module B: with two integrated 1/2 "and 1" solenoid valves and two flow regulators. Can be combined with modules A and C.
- Module C: module with two integrated 1/2” solenoid valves, a flow regulator and an additional connection.
Can be combined with module A or B.
The combination of modules A, B and C, feasible using special stainless steel tie-rods, allows for the application of various functions from a single source of vacuum, as well as allowing for the elimination of numerous pipes and fittings, often causing leaks. The multi-function modules are supplied already tested to a guaranteed final level of vacuum of 0.5 mbar and perfectly sealed.
The technical characteristics are those of the pneumatically actuated three-way vacuum solenoid valves:
- Servo-control pressure: 6-7 bar; 4-6 bar for version LP, with non-lubricated compressed air, 5 micron filtration, according to standard ISO 8573-1 class 4
- Operating pressure: from 0.5 to 3000 absolute mbar
- Electric coils: fully plastic-coated in synthetic resin, watertight, insulation class F (up to 155°C) as per standard VDE, with 3 mm two-terminal electrical connections for connectors in compliance with EN 175301-803
- Protection degree IP 54; IP 65 with connector inserted.
- Tolerance permitted on the nominal voltage value: ± 10%
- Electrical power of the coils: from 1 to 2 W, depending on the electrical voltage
- Temperature of suctioned fluid: from – 5 to + 60°C
The ideal use of these multi-function modules is on vacuum thermoformers and vacuum thermo-welders, but they are also widely used on packaging and filling machines in the packaging sector and in all those cases where it is necessary to manage the vacuum at different points and times. Upon request, the modules can be customised and implemented with solenoid valves up to 3” gas. Contact our technical department for further information.

Image zoom
Go to the top Go down
Solenoid pilot valves with built-in low absorption electric coil

Solenoid pilot valves with built-in low absorption electric coil

Solenoid pilot valves are small 3-way valves activated by a built-in electric coil able to manage the compressed air or the vacuum for piloting the solenoid valves.
The electric coil of the solenoid pilot valve is fully plasticised plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650)-C.
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%
Allowed tolerance on the frequency value: ±5%
Room temperature: from -10 to +45 °C
Fluid temperature: from -10 to +95 °C
Electric power: from 1 to 2 W
Product codes: 0007301 0007302 0007303 0007304 0007305 0007306 0007307 0007308 0007309 0007310 0007311 0007366

4.60
CAD files on TraceParts
Image zoom
Go to the top Go down
Solenoid pilot valves with interface valves and micro connectors EN 175301 - 803 (EX DIN 43650) - C, for solenoid pilot valve electric coils

Solenoid pilot valves with interface valves and micro connectors EN 175301 - 803 (EX DIN 43650) - C, for solenoid pilot valve electric coils

Connectors are essential elements for bringing electricity to solenoid pilot valves with built-in low absorption coil.
They are available in the plug version, with a LED for signalling the presence of voltage and, upon request, with anti-interference circuits, with protection against overvoltage and polarity inversion.
All connectors provide full protection against water jets, according to EN 60529 (protection class IP 65), when correctly installed.
They also meet VDE 0110-1 /89 standard, working voltage up to 250 V, overvoltage category II, degree of use 3 regarding insulation class.
In all contacts, a snap joint between contact holders and the external protection guarantees a safe locking and easy assembly.
A safe locking is essential for guaranteeing the operator full protection when handling the connector.
The contact holder can be easily extracted from its casing simply using a screwdriver.
This operation also allows orienting the earthing contact in the desired direction
Product codes: 0015437 0015478 0015157

4.61
CAD files on TraceParts
Image zoom
Go to the top Go down
Solenoid valve sealing kit with low absorption electric coils

Solenoid valve sealing kit with low absorption electric coils

Sealing kits are composed of a membrane, shutters and standard O-rings installed on our compressed air and vacuum 3-way valves and solenoid valves.
In presence of very hot fluids (up to 250 °C) or corrosive fluids, we can supply sealing kits in special compounds. Please contact our technical department.
Product codes: 0007271 0007272 0007290 0007273 0007291 0007274 0007292 0007379 0007383 0007275 0007276 0007293 0007277 0007294 0007278 0007295 0007279 0007280

4.62
CAD files on TraceParts
Image zoom
Go to the top Go down
Pilot membranes for solenoid valves with low absorption electric coils

Pilot membranes for solenoid valves with low absorption electric coils


Product codes: 0007104 0007105 0007229 0007230 0007296 0007231 0007297 0007232 0007298

4.62
CAD files on TraceParts
Image zoom
Go to the top Go down
